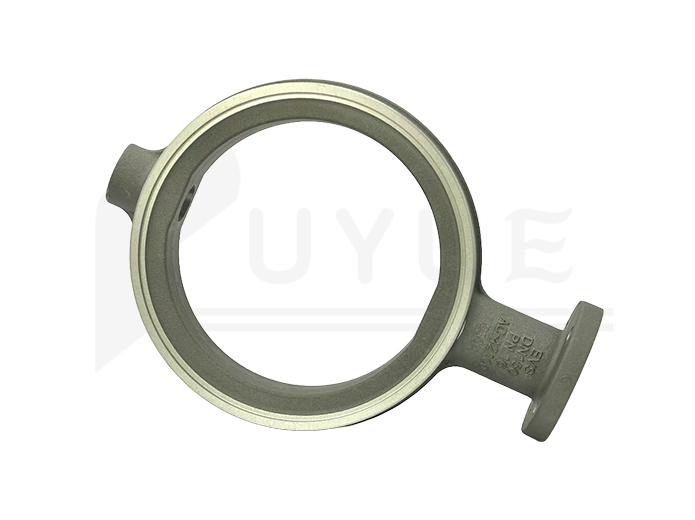

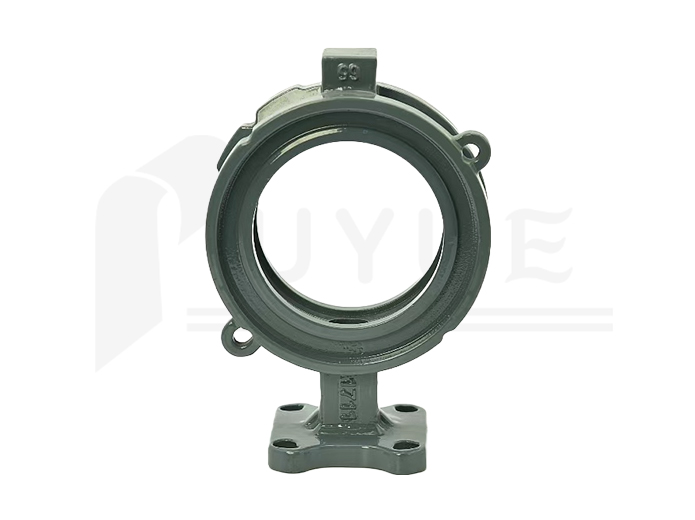

Wafer Valve Body
Wafer Valve Body
Material:
1.4308/1.4408/GGG40/WCB/Aluminum
Dimension:
DN50-DN600
Pressure:
PN3-PN16
Casting:
Investment Casting/Sand Casting
Certificate:
PED
Approval by Lloyd's Register Classification of China
Descriptions
Parametric
Specificities
Details
Case
Relevant Product Introduction

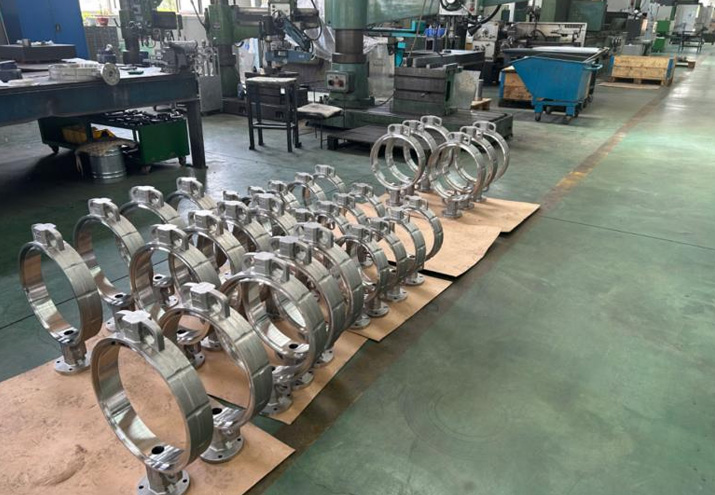

Wafer valve body，material stainless steel made by investment casting，material carbon steel and ductile iron made by sand casting.Size between DN40-DN600. Machining is completed through CNC lathe and horizontal milling machines.，ensuring good dimension accuracy. Annealing solution is carried out for stainless steel product.
Get In Touch With Us
20
+
Year/Experiences
245
+
Employees
Product Parameters
| Manufacture Process: | Sand casting/Investment casting |
| Heat Treatment: | Solution annealing |
| Maximum Part Size: | DN600 |
| Minimum part size: | DN40 |
| Certificate: | PED |
| Material Standard: | EN10213/EN10088-1/ASTM A351/A351M and more |
Product Features
Customer customization
We can develop patterns and produce corresponding products according to customer requirements.
Product accuracy
Machining is carried out through CNC lathes and machining centers to ensure good product accuracy.
Casting dimensions
Investment casting ensures good dimensional accuracy and surface finish of the castings.
Stability
With a monthly production capacity of over 80,000 valve disks, we guarantee product quality and timely delivery.
Professionalism
Having been engaged in the valve field for more than 15 years, we can help customers complete the production of various products.
Certification
Approval by Lloyd's Register Classification of China, our products can be used in the marine industry.
04
On The Basis Of Deepening Co-Operation With Existing Customers, We Continue To Develop New Customers In The Market And Provide Customers
Material Composition
This wafer butterfly valve body is mainly cast of **GGG‑40.3 low‑temperature ductile iron**. Alternative materials include regular ductile iron, WCB carbon steel, CF8/CF8M stainless steel and duplex steel. It maintains good mechanical toughness under low‑temperature working conditions, with reliable pressure‑bearing and corrosion‑resistant performance for marine and chemical pipelines.
1
Dimensional Specifications
Standard size DN150, pressure rating PN16. A full range of standard DN sizes are available. Non‑custom dimensions are acceptable per customer drawings, complying with ANSI, DIN, ISO and marine industry standards.
3
Certifications And Approvals
Material Test Report(MTR) for GGG‑40.3 is available. Products can pass third‑party inspection. Lloyd’s Register marine certification can be provided to satisfy marine project requirements.
5
Design And Construction
Compact wafer‑type structure with integrated shaft bosses. Optimized internal flow channel reduces flow resistance. Wafer mounting design for installation between pipe flanges, simple assembly, stable valve‑rod connection and long‑term reliable operation.
2
Surface Finishing
Casting surface adopts shot‑blasting treatment. Anti‑rust primer painting is optional. The sealing seating face is precision‑machined to high surface finish to ensure stable sealing performance.
4
Customization And Modifications
Drawing‑based OEM orders are welcome. Customizable options include material grade, pressure rating, dimension, shaft boss structure, surface coating, casting marking and logo engraving according to your technical specifications.
6
