Cast Actuator Gearbox Housing for Butterfly Valve
Ductile iron cast gearbox housing for butterfly valve actuator connection. Precision machined mounting holes, accept OEM and drawing‑based custom orders for industrial valve applications.
Material:
1.4308/1.4408/1.4469/1.4470/1.4588/C276 and more
Dimension:
DN25 – DN400
Pressure:
PN3-PN25
Casting:
Investment Casting
Certificate:
PED
Approval by Lloyd's Register Classification of China
Descriptions
Parametric
Specificities
Details
Case

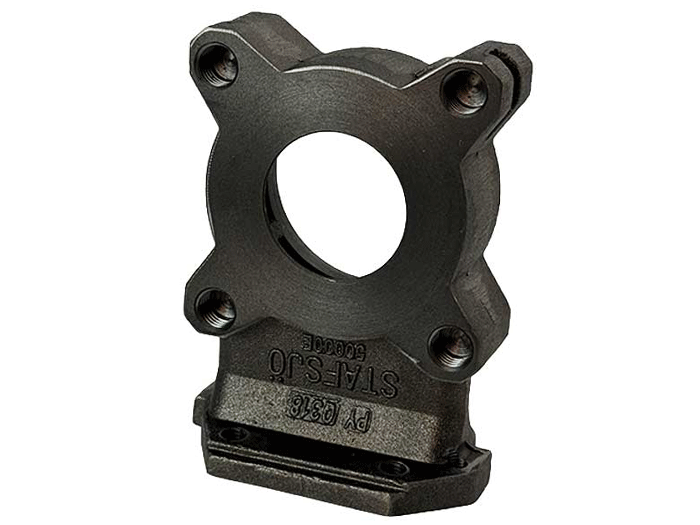

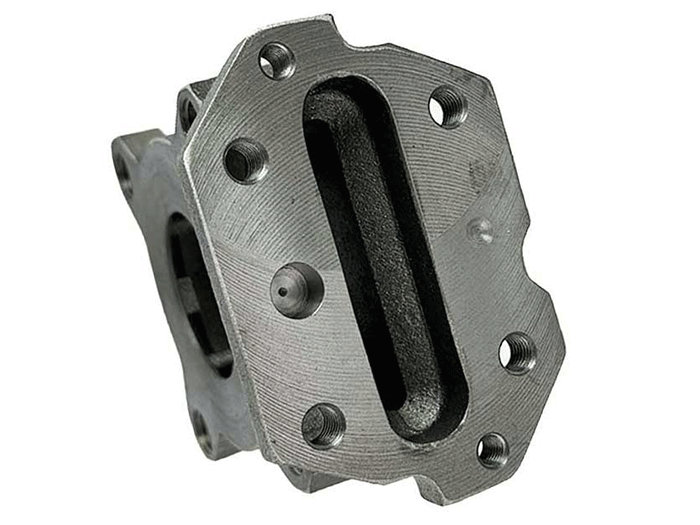

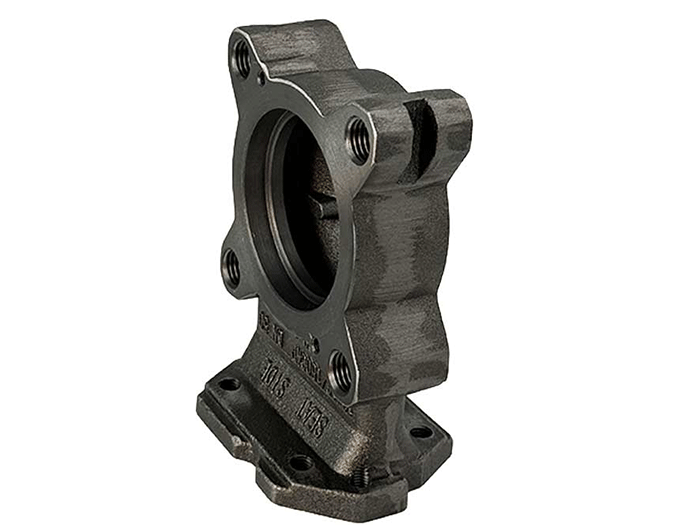

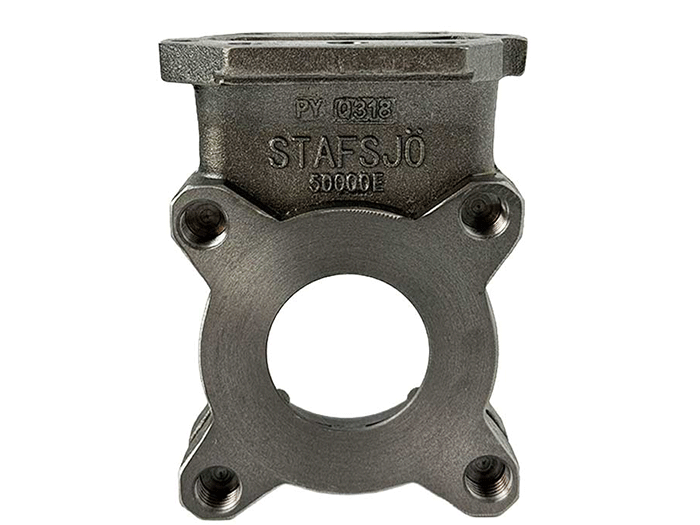

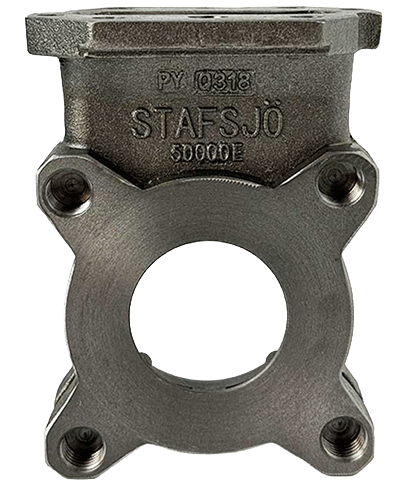

Cast Actuator Gearbox Housing for Butterfly Valve
Our butterfly valve actuator gearbox housing is produced by high‑quality ductile iron casting. The integral cast structure provides high mechanical rigidity and strong anti‑impact capacity to adapt to frequent cyclic actuation. All connecting flanges and threaded holes are precision‑machined to guarantee accurate fitting between butterfly valve and actuator, ensuring reliable torque transmission. The reasonably‑designed inner cavity minimizes gear friction and operating noise. Shot‑blasting surface treatment improves coating adhesion; anti‑rust paint is available for corrosive working conditions. We accept drawing‑based
Get In Touch With Us
20
+
Year/Experiences
245
+
Employees
Product Parameters
| Manufacture Process: | Investment casting |
| Heat Treatment: | Solution annealing |
| Maximum Part Size: | 500mm |
| Minimum part size: | 25mm |
| Certificate: | PED |
| Material Standard: | EN10213/EN10088-1/ASTM A351/A351M and more |
Product Features
Customer customization
We can develop patterns and produce corresponding products according to customer requirements.
Product accuracy

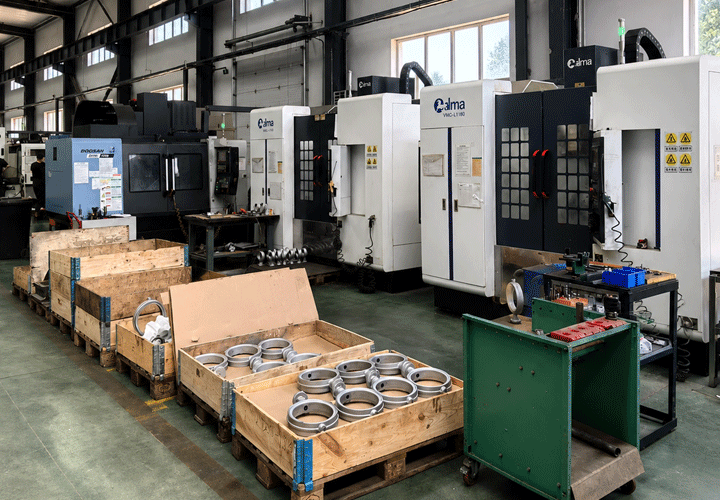

Machining is carried out through CNC lathes and machining centers to ensure good product accuracy.
Casting dimensions
Investment casting ensures good dimensional accuracy and surface finish of the castings.
Stability
With a monthly production capacity of over 80,000 valve disks, we guarantee product quality and timely delivery.
Professionalism
Having been engaged in the valve field for more than 15 years, we can help customers complete the production of various products.
Certification
Approval by Lloyd's Register Classification of China, our products can be used in the marine industry.
Product Parameters
On The Basis Of Deepening Co-Operation With Existing Customers, We Continue To Develop New Customers In The Market And Provide Customers
Material Composition

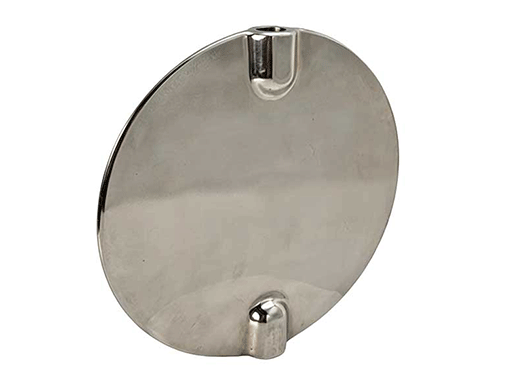

Our double‑lug butterfly valve discs are made of high‑quality stainless steel SS304 / SS316. It delivers excellent mechanical strength, toughness and outstanding corrosion resistance for harsh working conditions.
1
Dimensional Specifications
Standard sizes available, also support fully custom dimensions based on customer drawings. Compliant with ANSI, DIN and ISO industrial standards.
3
Certifications And Approvals
Material Test Report (MTR) is available. Products pass third‑party inspection for industrial valve applications.
5
Design And Construction
Concentric double‑lug structure, precisely machined shaft lugs for stable valve‑rod connection. Optimized profile ensures reliable sealing performance for butterfly valves.
2
Surface Finishing
Mirror‑polished surface, smooth finish, low friction. Sandblasting is also available upon customer request.
4
Customization And Modifications
Accept OEM & drawing‑based customization. We can modify material, thickness, lug structure and surface treatment according to your requirements.
6
Product Cases
We supply high‑quality cast valve bodies and valve discs for global valve manufacturers, supporting OEM & drawing customization.
OEM Investment Casting Butterfly Valve Disc for Industrial Valves
Double Eccentric Butterfly Valve Disc with Ad2000 for Machinery Parts
OEM Duplex Stainless Steel Investment Casting Valve Disc for Industrial Butterfly Valve
OEM Precision Aluminum Valve Body Casting with CNC Machining
Customized Precision Casting Butterfly Valve Body
